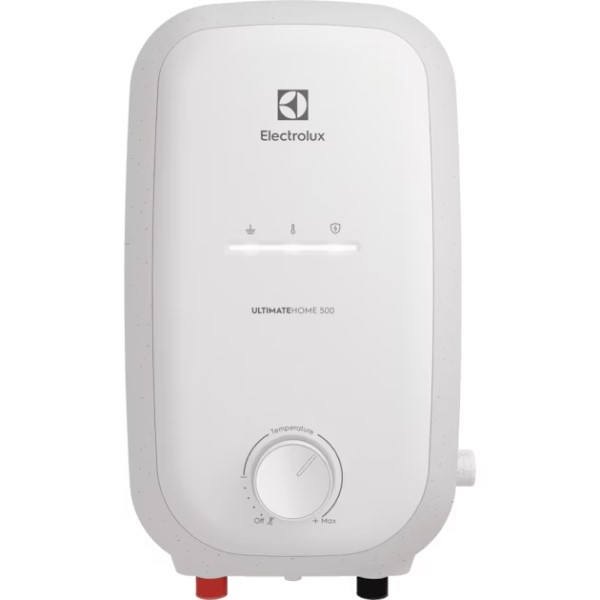

Electrolux 3.6kW Electric Water Heater with Pump [EWE361QB-W4]

Electrolux 3.6 kW UltimateHome 500 Electric Instant Water Heater Comfort Flow Tank with Pump [EWE361QB-W4] New

Features :

• Temperature stability and thermal resistance
• OptiFlow pump, energy saving and 50% noise reduction
  • ​pump boost : increase the incoming water flow rate (not applicable when the incoming water flow rate is too low)
  • pump can be turned off manually
• 15 advanced safety features​
  • Self check (Safe Ready)
  • antibacterial shower head​
  • ELCB checker and indicator (prevent electrical shock and electrical fires, automatically cut off the power supply when the current leakage is more than 15 mA)
  • earth indicator
  • L-N Reverse Connection Detection
  • heating indicator
  • IP25
  • built-in auto flow sensor
  • double action thermostat
  • cable seal water protection
  • water filter (single 3-in-1 valve)
  • double relay circuit
  • surge protector
  • auto reset thermostat (thermostat automatically cut off the power supply to prevent overheat when there is an abnormal rise in water temperature)
  • heat and flame retardant PCB
• Cold shower mode
• Anti-UV
• Manual adjustable power
• AntibacPlus shower head with three spray settings
  • ​shower head coating provides an antibacterial treatment, reduces up to 99% of harmful bacteria
  • three spray settings : Regular, Strong, Massage
• Three LED lights - highlight safety features
• Made with 50% recycled plastic on product

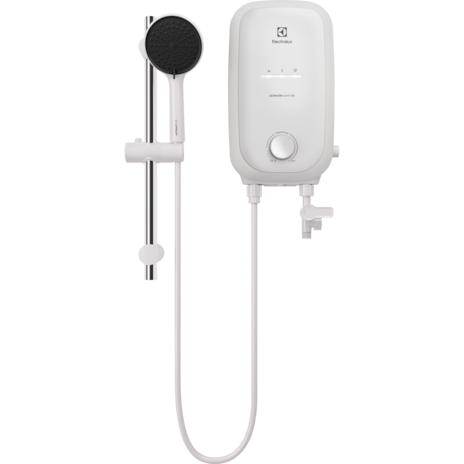

• Accessories : AntiBacterial 3 step shower head with bar
• Warranty (upon online registration within 14 days from the date of purchase) :
  • 2 years general warranty
  • 5 years warranty on heating element
  • 10 years warranty on tank leak

Specifications :

• Electric Instant Water Heater
• Voltage (V) : 240
• Frequency (Hz) : 50 / 60
• Power Wattage : 3600 W / 3.6 kW
• Current (A) : 15
• On / Off Switch : 25 A
• Fuse / MCB : 25 A
• Minimum Water Flow Rate : 2.0 Litre / minute
• Minimum Inlet Water Pressure : 0.1 Bar (10 kPa; 1.45 psi)
• Maximum Inlet Water Pressure : 6.0 Bar (0.6 MPa; 87.02 psi)
• Water Connection : 1/2" BSP Single Point System
• Power Control by Knob
• Main Colour : Ceramic White
• Main Material : Plastic

Product Dimension and Weight :

• Width (mm) : 218
• Depth (mm) : 89
• Height (mm) : 373.6
• Packaging Dimension (Width x Depth x Height) (mm) : 230 x 85 x 608
• Gross Weight (kg) : 2.8
• Net Weight (kg) : 1.8

Note :

• Read the user manual booklet before using this appliance.
  • Visit the following website for this water heater's user manual booklet at Electrolux 3.6kW Electric Instant Water Heater with Pump EWE361QB-W4 User Manual Booklet
• Children cannot play with this appliance.
• Do not use metallic / chromed hose and conductive control valve.
• The Earthing installation should be carried out in accordance with the local wiring regulations.
• This electric water heater is a single-point system, and the water outlet can only be fitted to the hose and hand shower set provided.
• Highly recommended to connect the water inlet connection to a tank storage supply for water heater with pump.
• The heater tank must be filled up with water before turning on the electricity supply to prevent any dry burnt damage to the heating element.
• Only use thread or sealing tape at 3-in-1 stop valve inlet. Use the 3-in-1 stop valve accessories provided with the electric water heater.
• Avoid using the Booster Pump function more than 3 times of each showering.
• Switch off the power supply during lightning or thunderstorms.
• Switch off the power supply after showering.

• Test the Earth Leakage Circuit Breaker (ELCB) regularly at least once a month.
• If the Power / Heater Indicator does not turn off when you press the ELCB (Earth Leakage Circuit Breaker) Test Button, switch off the main supply and contact Electrolux Consumer Care Centre for repair service.
• Immediately switch off the main supply and contact Electrolux Consumer Care Centre for repair service when there are the following conditions:
  • ​odd noise, smell or smoke from the electric water heater.
  • ELCB trips and electric water heater indicator does not light up.
  • not able to adjust the water temperature.
  • distinct change in performance.
  • water leakage from inside.

• Do not use thinner, alcohol, petrol or any other organic solutions to clean the water heater unit. Use a damped cloth with a mild detergent for cleaning this water heater.
• Clean the mesh filter regularly. Turn off the water supply before removing the filter.
  • ​Remove the Built-in Filter by turning its cap anticlockwise. Whenever needed, flush the internal strainer with water to remove any trapped sediments.
  • Beware of the alignment of Internal Strainer. when fixing back the Built-in Filter. Use the protruded guideline within Stop Valve to position the Internal Strainer.
• Clean the hand shower head holes using a soft brush from time to time.
• Do not spray water on the water heater unit.
