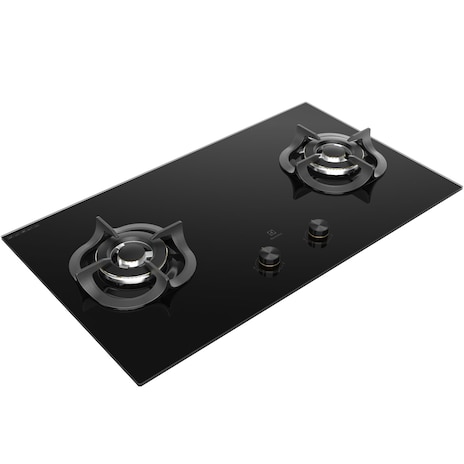

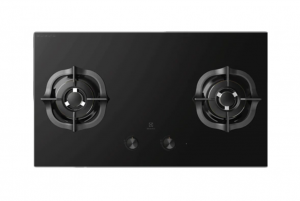

Electrolux 90cm Built-In Gas Hob with 2 Cooking Zones Ultimate Taste 300 [EHG9231BC]
Features:
- Blue flame burns efficiently to lower energy cost
- High power burner is ideal for stir-frying
- Flexi installation cut-out
- Flame failure device: automatically cuts off the gas supply if the flame goes out during cooking
- Cast iron pan support
- Wok burner: fast heating using a wok or pan
- Double ring burner
- Tempered glass surface
- Manual control : rotary knob
- One hand ignition
- 2 years general warranty
- 10 years glass top warranty
Specifications:
- Product type: Gas hobs
- Installation type: Built-in
- Energy type: LPG Gas
- Burner 1 power: 5.0 kW
- Heat input: 5.0 kW
- Gas pressure: 30 mbar
- Reduce rate: 1.0 kW
- Gas connection: 0.5 inch straight thread (14 threads per inch)
- Battery: 1.5 V D.C.
- Main colour: Black
- Main material: Glass
- Accessories: Hose connection
- User manual included
Product Dimensions and Weight:
- Width (mm): 900
- Depth (mm): 520
- Height (mm): 130
- Cut-out width (mm): 700 - 865
- Cut-out depth (mm): 405 - 480
- Net product weight (kg): 16.9
Note:
- Before installing or using this appliance, please read the user manual book carefully and give particular attention to the safety warnings.
- Use the appliance in a well-ventilated room.
- Do not use gas other than that which is specified on the label attached.
- Do not use vinyl gas hose, use only a rubber hose.
- Ensure that the rubber hose does not touch any part of the unit or lies underneath it.
- Connect the rubber hose to the gas inlet and fasten it with a hose clamp.
- Upon completion of gas installation connections, check whether there is gas leakage at the joint.
- Do not place anything such as flame tamer, asbestos mat between the pan and pan support.
- Do not remove the pan support and enclose the burner with a wok stand not supplied by Electrolux.
- This gas hob is to be used for cooking only.
- Do not use heat-resistant glass pot, casserole, pots that have a slow heat transfer nature or shallow pan for frying and deep frying.
- Locate pan centrally over burner.
- Wok support to be used for wok and other trivets for flat bottom pot.
- Turn off the ignition knob and regulator of the cylinder after use.
- Avoid touching the burner and pan stand after use.
- Do not spray aerosols when using the gas hob.
- If a gas leak is found, close stopcock, open up all windows and call your dealer.
- When the burner flames being accidentally extinguished, turn off the burner control knob and wait for at least 1 minute to re-ignite the burner.
- For burner fitted with a flame supervision device, if the burner has not lit after 15 seconds of ignition operation, turn off the device, open the compartment door and wait for at least 1 minute to re-ignite the burner.
